Description
|
SmartDeviceXL+ |
| capacity |
200 KW |
| Order quantity (MOQ) |
1 |
| Dimensions |
3800*980*855mm |
| Internal Dimension |
2797*977*487mm |
| Net Weight |
650/KG |
| Parameters (Take S19 series as an example) |
39 |
| Major switch capacity |
350A |
| Rated current |
305A |
| Input voltage |
380V~415V AC 50/60HZ |
| Operating power (Server not included) |
2.4KW |
| Maximum Power |
202.4KW |
| Fuel consumption |
1100L |
Ideal For Medium And Large Companies
For medium and large-scale company, this is a very convenient and quick way to overclock with oil cooling. By applying our fluid cooling cabinet, clients are available to mine as their wishes, even in their garden. Noise generated by the devices will be defused by the cabinet. From now on, clients will have a quiet and efficient mining farm. Through our adapted PSU and software, the devices can achieve a 60% increase in hash rate and reduce the cost of each mining machine. And as the number of mining machines increases.
Overclocking and fine-tuning with custom firmware effects from 40% to 60% more hashrate. May require mechanical adaptation, additional PSU’s or custom immersion firmware!
By reducing the influence of high temperature, humidity, dust, and vibration, the failure rate of equipment can be reduced by 60%, and the cost of equipment operation and maintenance can be reduced by 85%.
By reducing the contamination, overheating and rust of the mining machine, the service life of the mining machine hardware is increased by about 4-5 years.
Different from the traditional mineral cooling oil, the cooling oil is non-toxic, harmless, and can be degraded rapidly in the environment like water and soil.

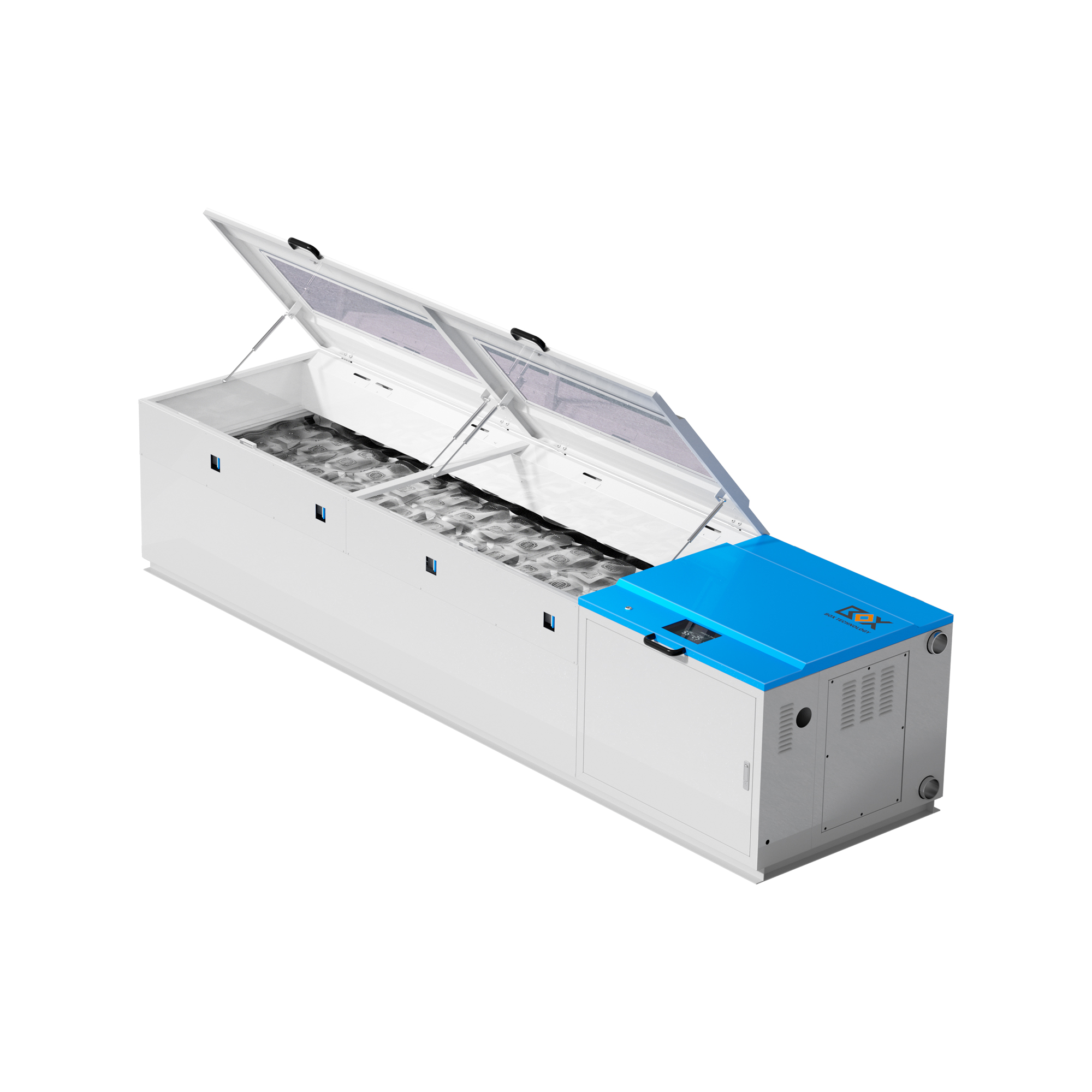

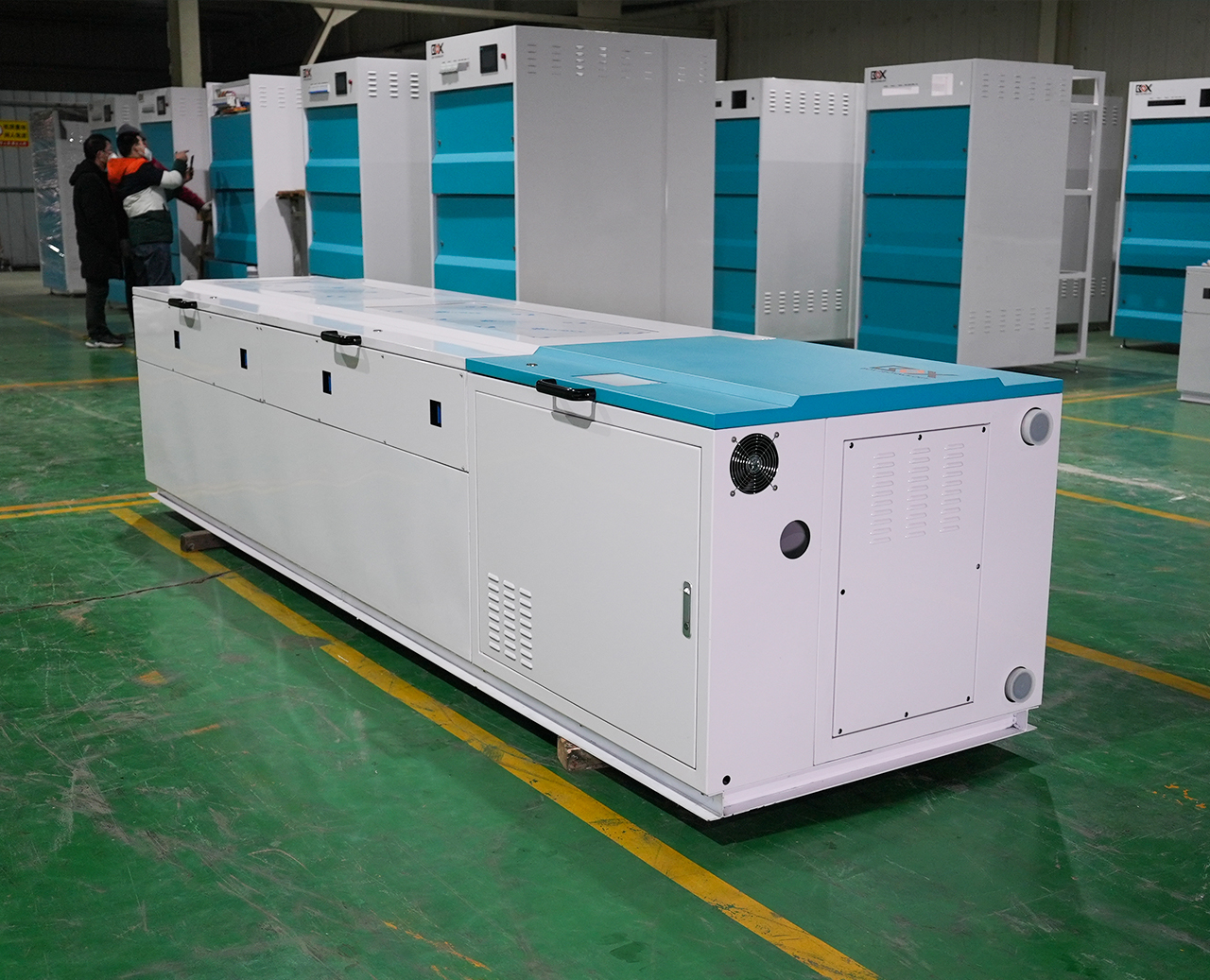

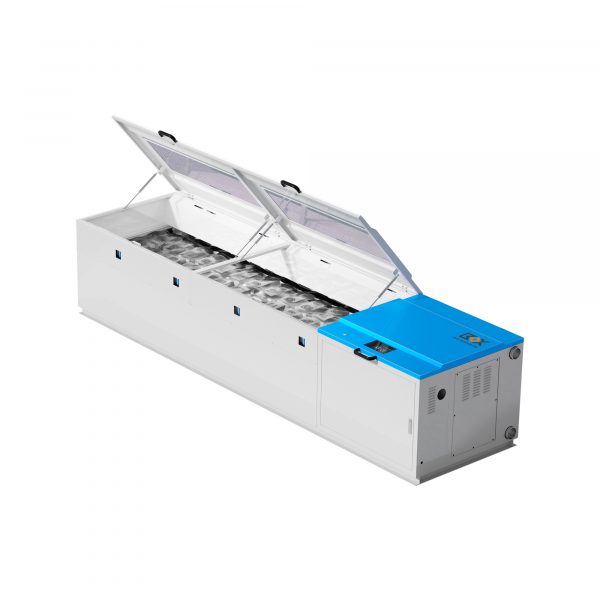

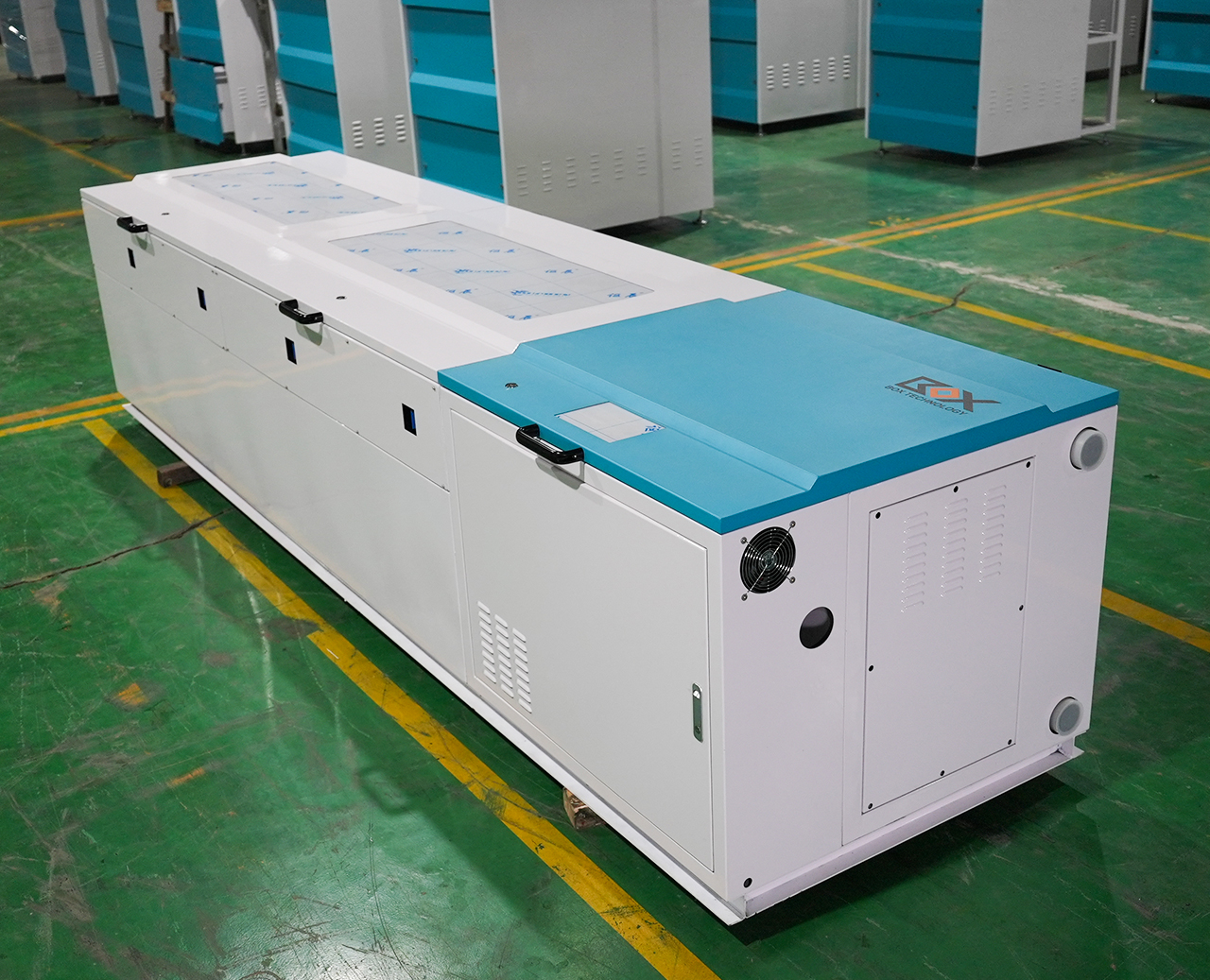

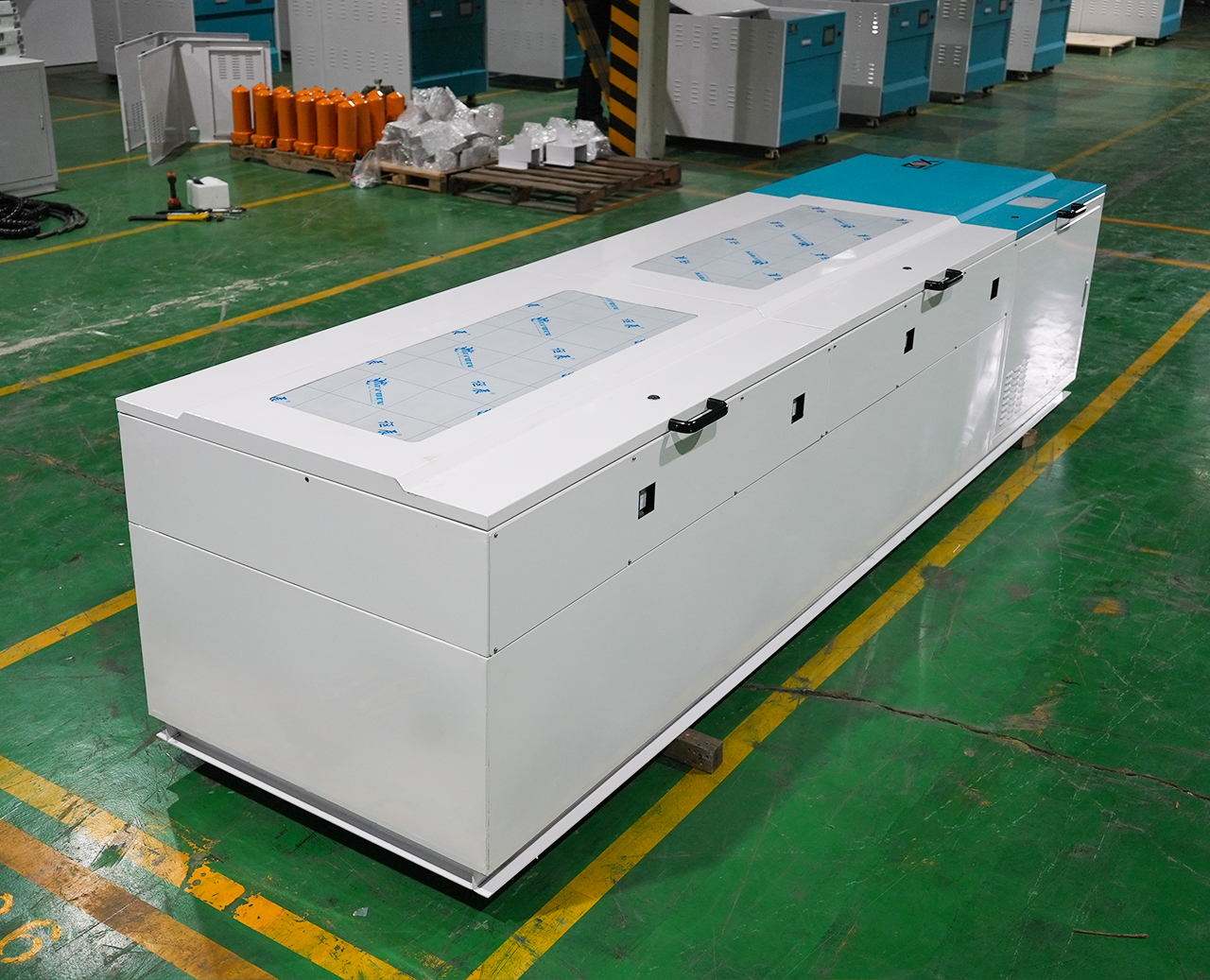

- Overall shape and size of the product (length × width × height): 3800mm×980mm×855mm, which can hold 39 sets of Antminer S19.
- Product composition: 200KW immersion cooling container is composed of immersion cooling container body, shielded oil pump, brazing plate heat exchanger, etc.
- The device can connect to WIFI，Can be viewed remotely
- LCD makes the display clearer and more complete.
- Touch buttons offer users massive convenience in settings. More easily, customers can operate it through an APP on cellphone under the mode of WIFI.
- Simple installation and commission, high cost performance. It is equipped with an alarm of super-high temperature to monitor and control liquid levels and temperature on a real-time basis.
- With the protection devices of electricity leakage, the system provides reliable and efficient technical support for equipment protection and personal safety.
